In order to meet the needs of anti-glare lighting in public venues and various production enterprises, NLC9210 LED platform lights have been developed and produced, which are widely used in all kinds of factories, stations, platforms, etc. As channels and platforms for flood lighting.
The surface of the high-strength aluminum alloy shell is treated by high-voltage electrostatic coating process, which can work reliably for a long time in various corrosive environments.;
High-strength and high-corrosion-resistant stainless steel exposed fasteners;
Physically tempered prismatic glass translucent cover, impact resistance, high light transmittance, anti-glare design;
Ring-illuminated optical design, wide irradiation range and uniform illuminance;
The use of internationally renowned brand LED light source, high light efficiency, high display index, long life and other characteristics;
The separation design of the light source cavity, the electrical cavity and the wiring cavity effectively controls the temperature rise of each component, extends the service life of the L ED and the drive power supply, and ensures the long-term stable operation of the lamps and lanterns.;
The product is small in size, light in weight, and has good vibration resistance;

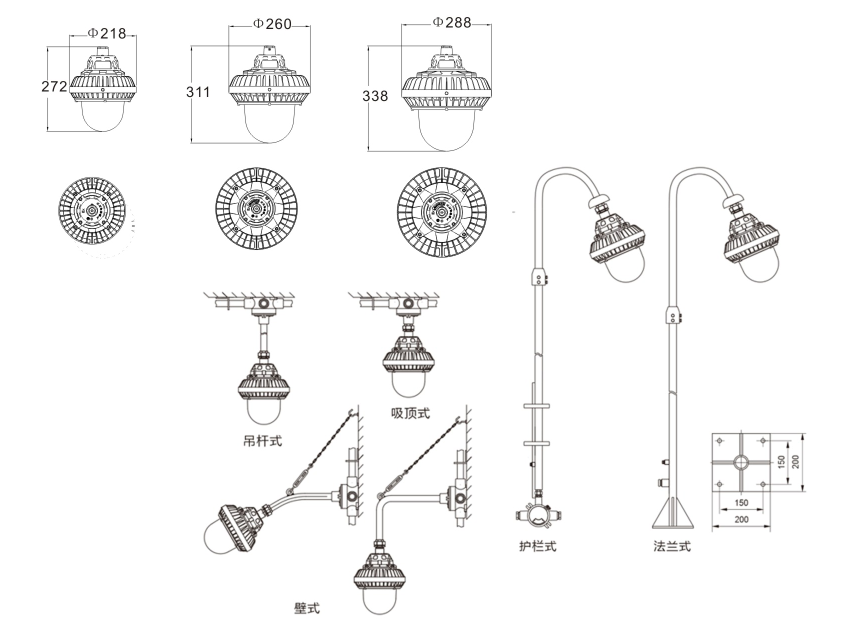

The products have a variety of installation methods such as ceiling type, wall-mounted type, ring type and boom type, guardrail type, flange type, etc., to adapt to the lighting needs of different on-site environments.
Rated voltage | AC220V/50Hz |
Rated power | 20W, 30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W, 110W、 120W, 130W, 140W, 150W |
Protection level | IP66 |
Insulation grade | | |
Anticorrosive grade | WF2 |
Introduction device | G3/4 inlet specifications, suitable for medium 7~medium 14mm cable outer diameter |
size | Φ218*H272mm ( 20- -40W ) Φ218*H272mm ( 50- -70W ) Φ260*H311mm ( 80- -100W ) Φ288*H338mm ( 110-150W ) |
weight | 3.8kg 4.1kg 6.1kg 7.8kg |
Order number | Equipped with light source | Rated power (W) | Luminous flux (lm) | Average service life (h) |
NLC9210-L20W | LED | 20 | 2700 | 100000 |
NLC9210-L30W | LED | 30 | 4050 | 100000 |
NLC9210-L40W | LED | 40 | 5400 | 100000 |
NLC9210-L50W | LED | 50 | 6750 | 100000 |
NLC9210-L60W | LED | 60 | 7800 | 100000 |
NLC9210-L70W | LED | 70 | 9450 | 100000 |
NLC9210-L80W | LED | 80 | 10800 | 100000 |
NLC9210-L90W | LED | 90 | 12150 | 100000 |
NLC9210-L100W | LED | 100 | 13500 | 100000 |
NLC9210-L110W | LED | 110 | 14850 | 100000 |
NLC9210-L120W | LED | 120 | 16200 | 100000 |
NLC9210-L130W | LED | 130 | 17550 | 100000 |
NLC9210-L140W | LED | 140 | 18900 | 100000 |
NLC9210-L150W | LED | 150 | 20250 | 100000 |
